Survival Node — Test Results & Demo Videos

Pre-shipment test data for every component, plus demo videos from the field.

Equipment Test Results

Battery Health

Test methodAccuBattery discharge cycle (pre-shipment, one-time per unit)
Rated capacity5,000 mAh
Average Measured capacity4,890 mAh (97.8%)
Minimum acceptance threshold88%
Result✓ Pass

Hardware Specification Verification

DeviceMotorola Moto G Power (2024) ✓
RAM (confirmed)8 GB LPDDR4X ✓
Internal storage (confirmed)128 GB ✓
Usable storage after OS + software~57 GB
GPS chipPresent, lock confirmed ✓
Microphone (voice AI input)Functional ✓

OS Hardening

Bloatware removedConfirmed — 0 carrier apps ✓
Background data processesDisabled ✓
Boot time (cold)28 seconds
Survival Node AI agent (PocketPal "pal") loaded on bootConfirmed ✓

Each unit is battery-tested three times with Battery Bot Pro (test is ensure health status is "GOOD" in app): at intake inspection, after OS installation, and again before shipment. AccuBattery discharge test is conducted on each unit prior to shipment. Units that fall below 80% battery health are rejected.

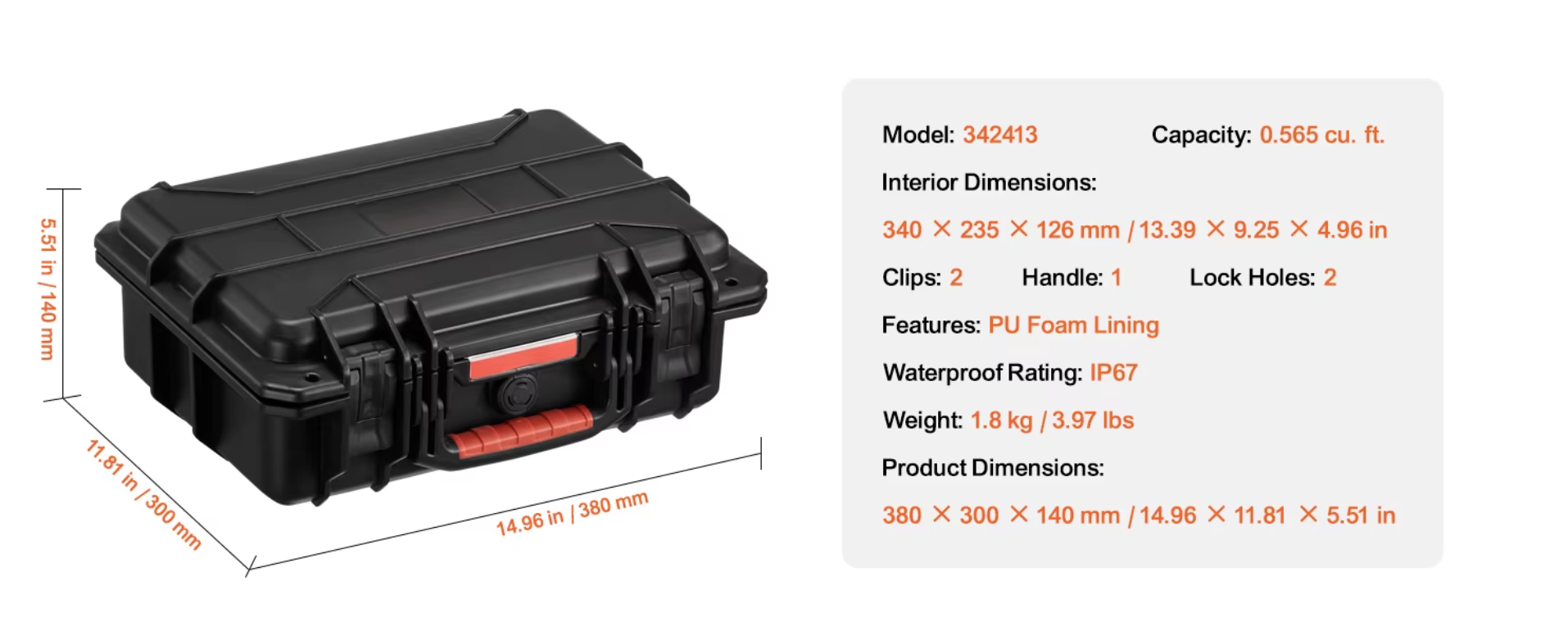

Hard case dimensions and specifications

Case Specifications

Model342413
Waterproof ratingIP67 ✓
Capacity0.565 cu. ft.
Weight1.8 kg / 3.97 lbs
Interior dimensions340 × 235 × 126 mm / 13.39 × 9.25 × 4.96 in
Product dimensions380 × 300 × 140 mm / 14.96 × 11.81 × 5.51 in
Clips / Handle / Lock holes2 / 1 / 2
LiningPU Foam

Water Resistance

RatingIP67 ✓
Submersion depth2ft
Duration5 minutes
Interior moisture after testNone ✓
Pressure-relief valve functionVented correctly ✓

Impact Resistance

Drop height tested6 ft onto concrete
Drops performed4 (corner, face, back, side)
Case integrity after dropsNo cracks, latches held ✓

Latch & Seal Integrity

Latch engagementBoth latches — full engagement ✓
Gasket seal (visual)No gaps, no deformation ✓
Padlock slotPadlock seated and locked ✓

Water resistance and impact resistance testing was conducted on one of the same model of case on 3/10/2026 (not every single case is tested). Cases are visually inspected prior to shipping.

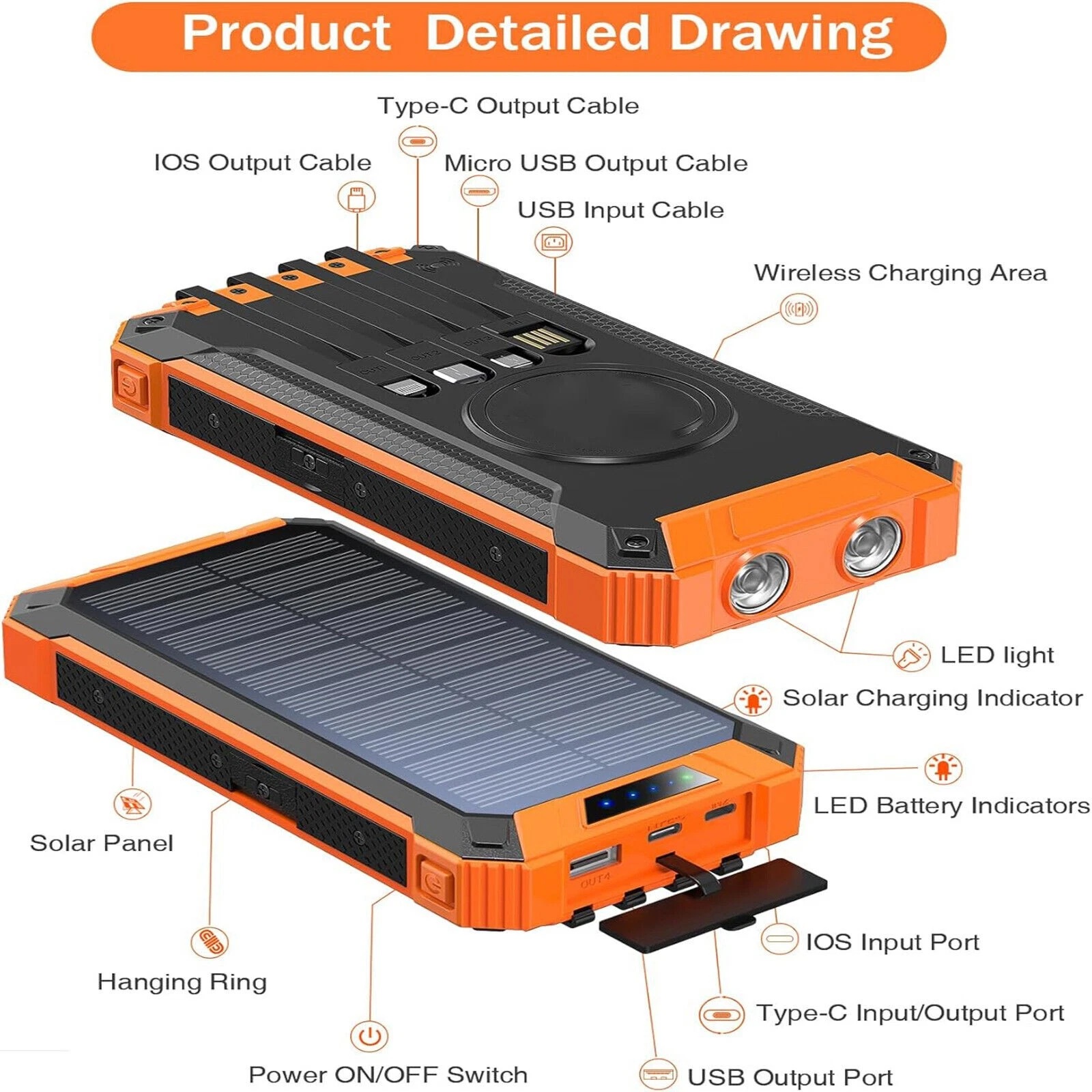

Solar battery product diagram showing all ports, cables, solar panel, LED light, and wireless charging area

Capacity Verification

Rated capacity42,800 mAh (manufacturer provided, not tested)
Core Unit phone charges (full)3-4 full charges ✓
Result✓ Pass

The manufacturer rating of 42,800 mAh is a fairly large capacity for a solar battery. To put it in perspective: the Moto G Power's battery is approximately 5,000 mAh. That means this solar battery, in theory, can fully recharge the phone roughly 8–9 times from dead - from the testing we've done we found it to be closer to 3-4 times. But optimal battery storage practices are essential for maintaining your Survival Node over time. Our testing routine is to charge the phone to 60% after use, which is considered by many to be the optimal long term battery storage level (source: TechFine - How to Store A Lithium Ion Battery) So while it is capable of fully charging the phone 4 times, the actual number may vary based on usage patterns and environmental conditions and we don't believe that to be the best way to do it anyway.

Wall Charging

Input portUSB-C + iOS
Simultaneous charge + dischargeNot Supported per manufacturer's specifications X

Output & Features

Attached output cablesUSB-C, iOS, Micro-USB, USB-A
Wireless chargingSupported ✓
Built-in LED flashlightConfirmed ✓
Emergency strobeConfirmed ✓
LED battery indicators4-LED charge level display ✓

Solar input is not fast enough to sustain all-day normal use — but under emergency conditions (use the phone for ~30 minutes, then power it off), the large capacity reserve plus solar trickle can sustain the kit for an extended period. Eastern Shore AI founder Chris Gorham has run his test unit on solar only for 6+ months.

RF Signal Attenuation — Standard Bags

Phone signal inside bagNo signal (confirmed) ✓

Physical & Seal Tests

Roll-fold seal (3 folds min)Passes leak-down test ✓
Material integrity (visual)No pinholes, no delamination ✓
Phone fits fully insideConfirmed with case removed ✓

Protection is only effective when the bag is fully sealed per instructions.

Coverage Verification

Region downloadedAll 50 US states ✓
Total map storage footprint~14.2 GB
Tile zoom levelsUp to z16 (street-level)
Cross-reference accuracyVerified against USGS data ✓

GPS Performance

Cold GPS lock time (open sky)6–9 seconds
Warm lock time<3 seconds
Accuracy (open sky)±4 meters
Tested with airplane mode + Wi-Fi offGPS functional ✓

Offline Navigation Test

Turn-by-turn routing (offline)Functional ✓
Search (offline place names)Functional ✓
Waypoint drop + saveFunctional ✓
Map renders without internetConfirmed ✓

Maps tested with device in full airplane mode and mobile data off. GPS uses satellite signals which operate independently of the internet — no data connection required.

Model Inventory

Model 1Qwen2.5-3B-Instruct (Q5_K_M)
Model 2Llama-3.2-3B-Instruct (Q6_K)
Model 3SmolVLM2-500M-Instruct (Q8_0)

Inference Performance — PocketPal Benchmark 3/26/2026 · PP:512 TG:128 Rep:3 · GPU Layers:99

Qwen2.5-3B (Q5_K_M) — token gen3.50 t/s
Qwen2.5-3B — prompt processing16.10 t/s
Qwen2.5-3B — peak memory5 GB / 8 GB (58.9%)
Llama-3.2-3B (Q6_K) — token gen2.75 t/s
Llama-3.2-3B — prompt processing14.32 t/s
Llama-3.2-3B — peak memory6 GB / 8 GB (72.4%)
SmolVLM2-500M (Q8_0) — token gen19.31 t/s
SmolVLM2-500M — prompt processing101.13 t/s
SmolVLM2-500M — peak memory1 GB / 8 GB (15.7%)

Offline & Persona Verification

Tested with airplane mode + data offAll models load and respond ✓
Survival Node persona loadedConfirmed in PocketPal ✓
Persona system prompt activeVerified via test queries ✓
Voice input (mic) functionalConfirmed ✓

Inference speeds measured during extended response generation (100+ token outputs). Speeds may vary slightly depending on ambient temperature, background processes, and battery charge level. All models verified offline before shipment.

Storage Audit

Total software suite51.8 GB
AI models12.4 GB (3 models)
Offline maps (all 50 states)14.2 GB
Medical wiki + reference apps3.8 GB
Survival apps + first aid2.3 GB

Offline Functionality Test (All Apps)

Offline maps — load & navigate✓ Pass
AI chat (PocketPal) — respond✓ Pass
Medical wiki — full article load✓ Pass
Survival reference library✓ Pass
Survival AI Agent Prompt Loaded (pre-loaded .txt file)✓ Pass
User Guide (pre-loaded PDF)✓ Pass

System Performance

App launch time (avg.)<1.8 seconds
Multi-app switching (no reload)Smooth — no memory pressure ✓
Background processes (non-system)0 — all eliminated ✓
Final QC check (all apps)Passed before ship ✓

Every unit undergoes a final software QC pass before shipment — all apps are opened, updated, verified offline, and the AI persona is confirmed active. The User Guide PDF is pre-loaded into the Files app and with a shortcut on the home screen.

▶ Quick Unboxing ▼
A quick look at everything that arrives with your Survival Node — straight out of the box.
▶ Components & Pre-Shipment Testing ▼
A walkthrough of every component in the kit and the pre-shipment testing process each unit goes through before it ships.
Benchmark Result
Benchmark result screenshot
